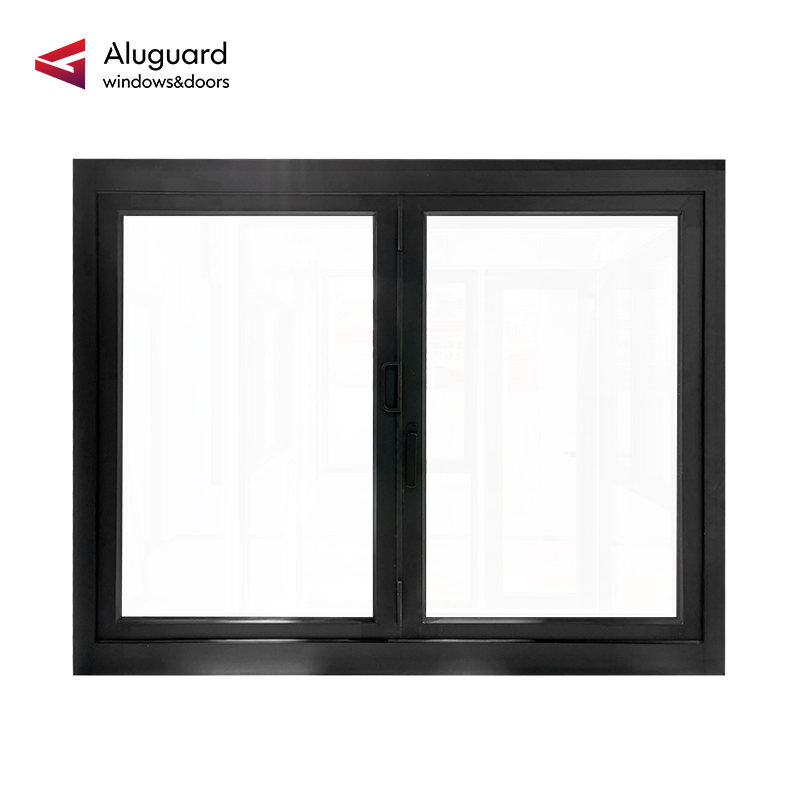

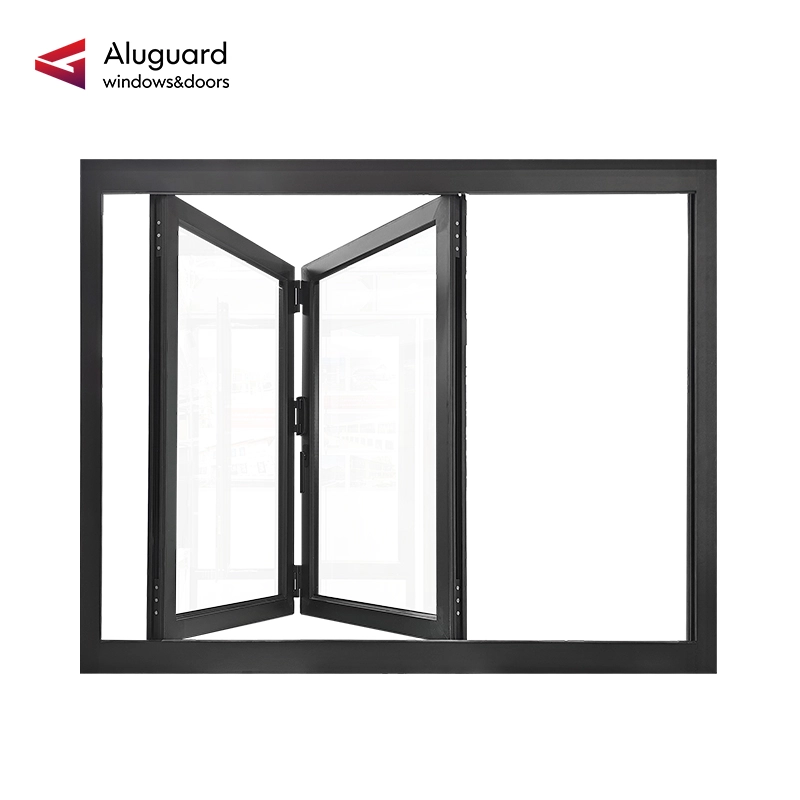

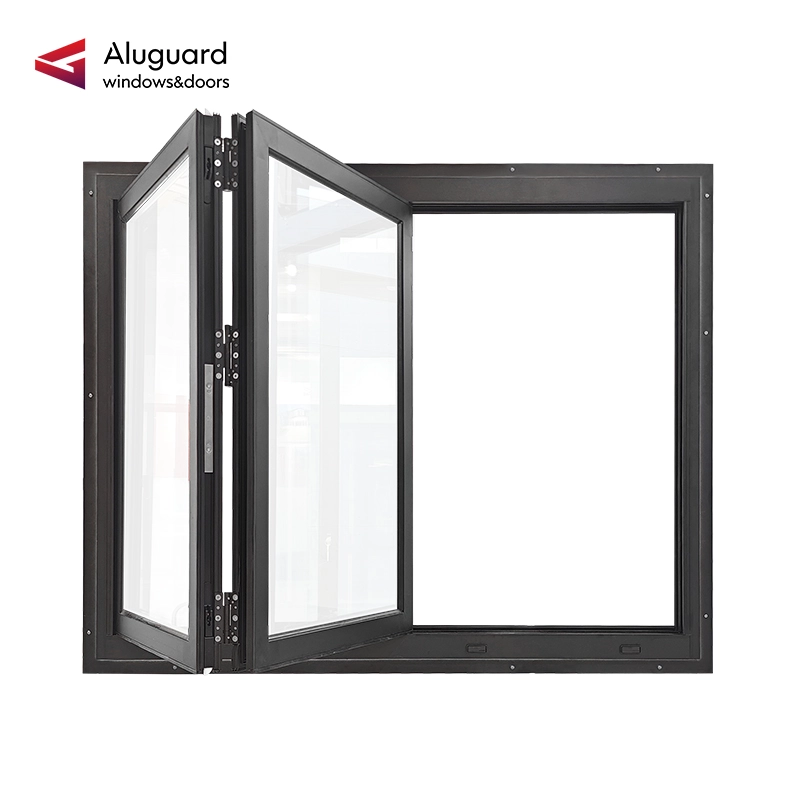

60 Minimalist Aluminum Folding Window – Flexible Opening Design with Expansive Views & Modern Architectural Elegance

MINIMALIST SERIES - SLIM FRAME ALUMINUM FOLDING WINDOW

Get A Quote

Get Product Catalog

Warranty Support

Professional warranty service and long-term product support.

Secure Packaging

Reliable packaging solutions for safe global transportation.

Fast Global Delivery

Efficient logistics and stable supply for international markets.

OEM & ODM Service

Tailored product development, branding, and engineering support to meet your market and project requirements.

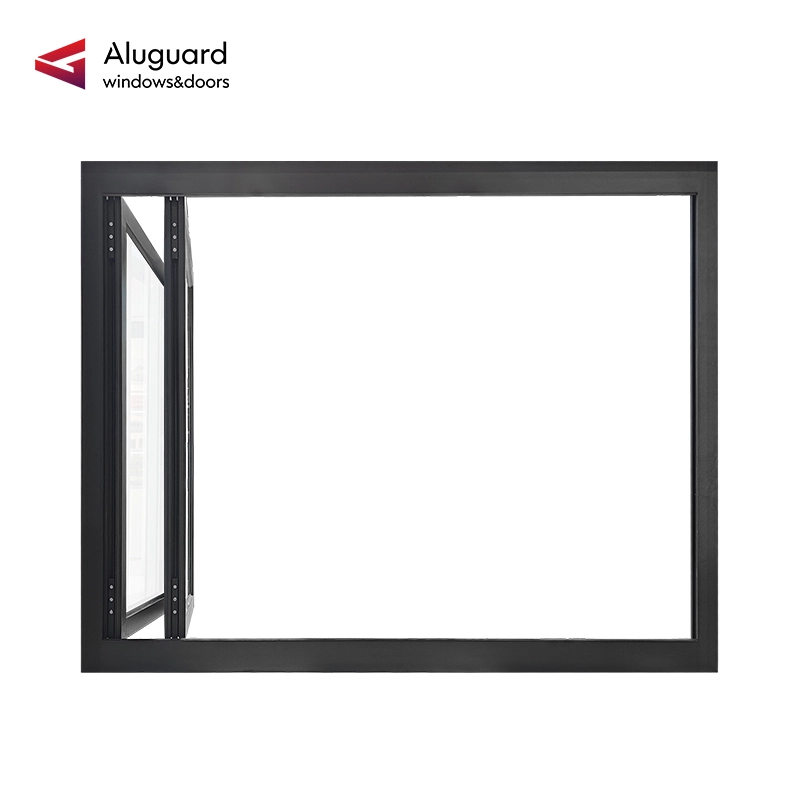

Flexible Folding Design

The folding panel system allows the window to open wide and stack neatly to the side, providing flexible ventilation and maximizing the available opening.

Weather-Resistant Performance

Durable aluminum profiles and EPDM sealing strips provide reliable air and water resistance, helping maintain a comfortable indoor environment in changing weather conditions.

Smooth & Effortless Operation

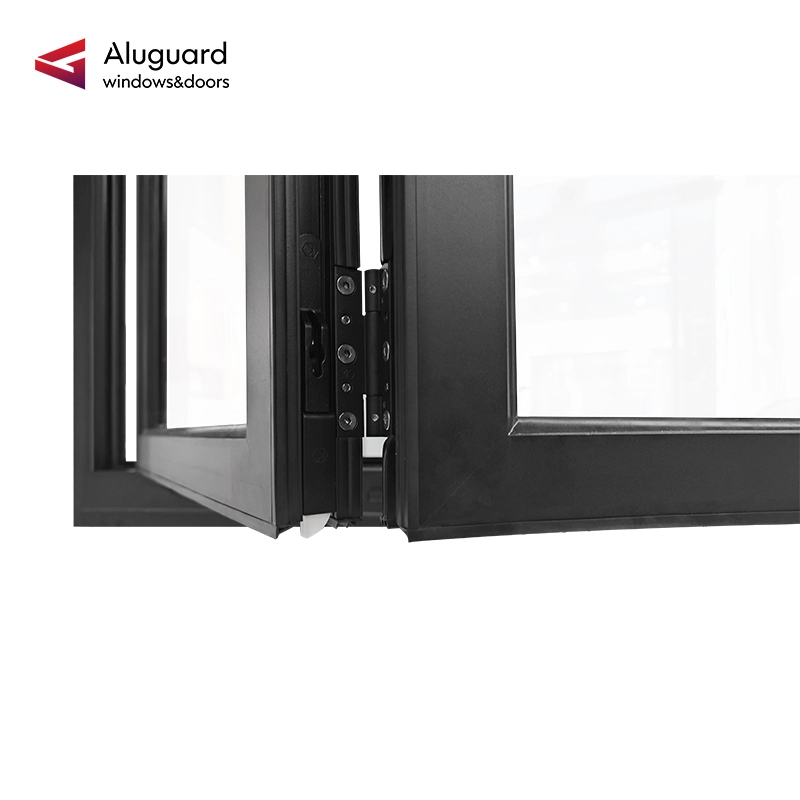

Precision-engineered hinges and quality hardware ensure smooth and stable panel movement for effortless opening, folding, and closing.

TECHNICAL DATA

Performance & Dimensional Specifications

Review the available performance and dimensional data for the 60 Minimalist Aluminum Folding Window.

Final performance and allowable sizes may depend on the selected glass, hardware, door configuration and project requirements. Where project-specific performance or compliance requirements apply, the relevant configuration and supporting technical information should be confirmed before order finalization.

Parameter	Value
U-Factor	0.329
Visible Transmittance	0.287
Air Leakage	≤0.5
Water Tightness	No Leakage @ 7.5 psf
Design Wind Load Resistance	60 psf
Overload Wind Load Resistance	90 psf

Parameter	Value
Basic Frame Depth	60mm
Max Swing Panel Height	60"
Max Swing Panel Width	29"
Min Swing Panel Height	16"
Min Swing Panel Width	16"
Suggested Fixed Panel Area (Single)	≤6 m²

PRODUCT FEATURES

60 Folding Window Hardware & Design Details

The 60 Aluminum Folding Window combines a slim, modern frame with a flexible folding opening system, allowing multiple panels to fold neatly to the side for wider openings and expansive views. Designed for contemporary residential and commercial spaces, it delivers effortless operation, enhanced natural light, and seamless connections between indoor and outdoor environments.

✓

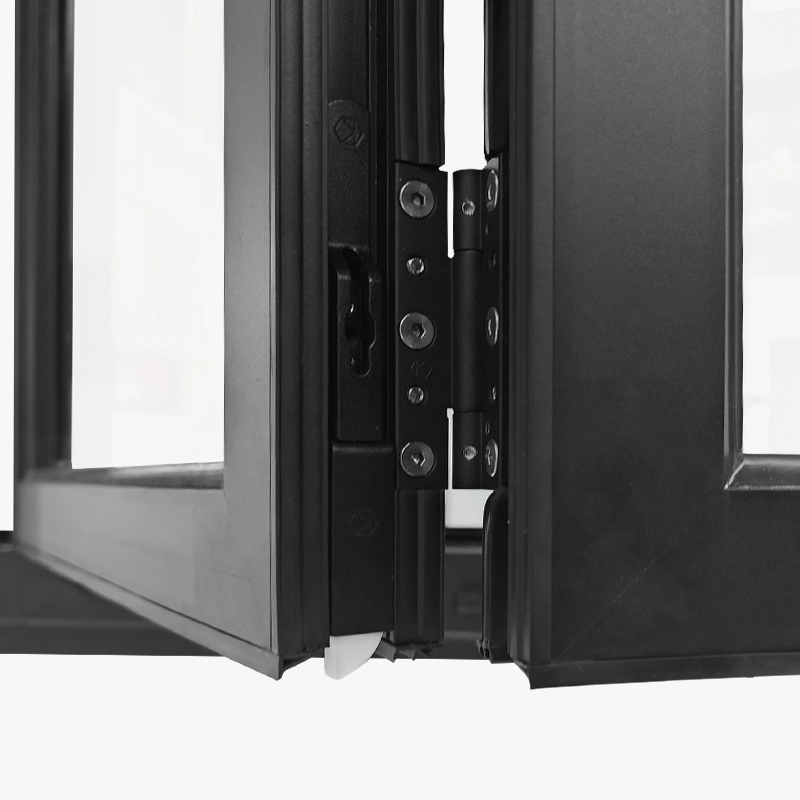

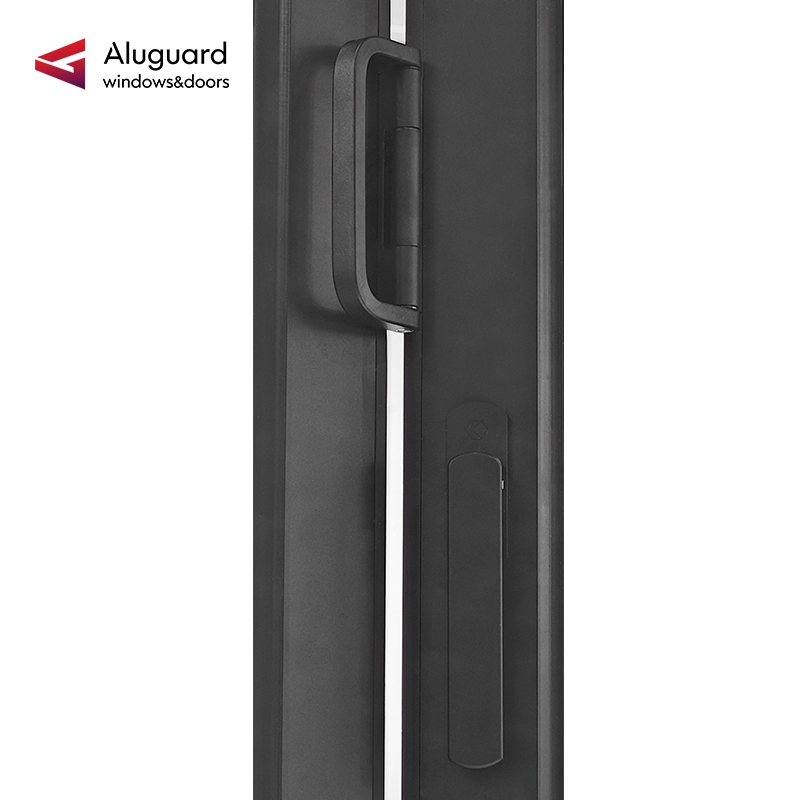

Automatic Rebound Latch

✓

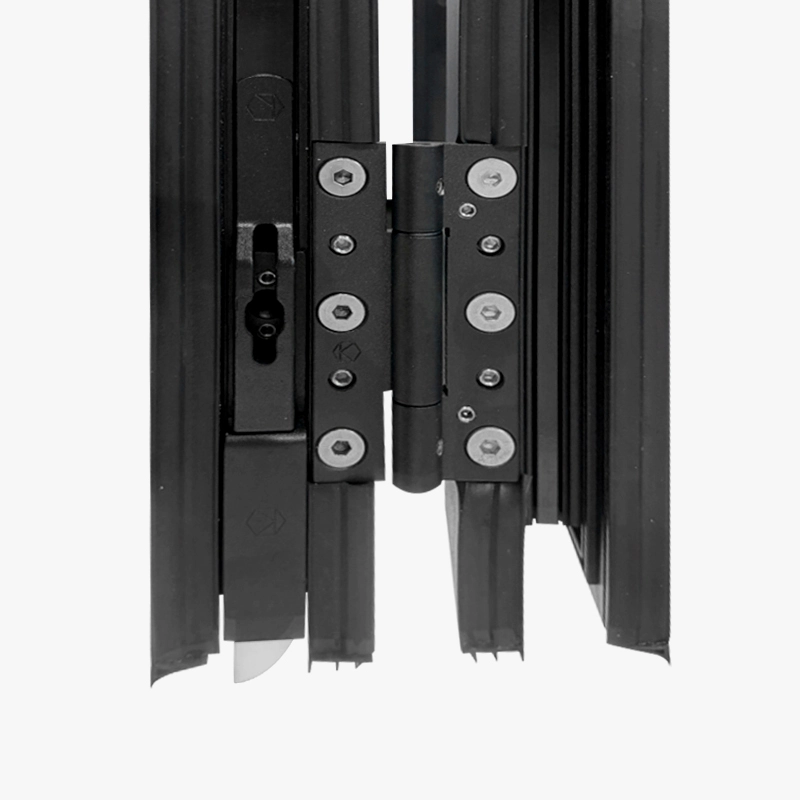

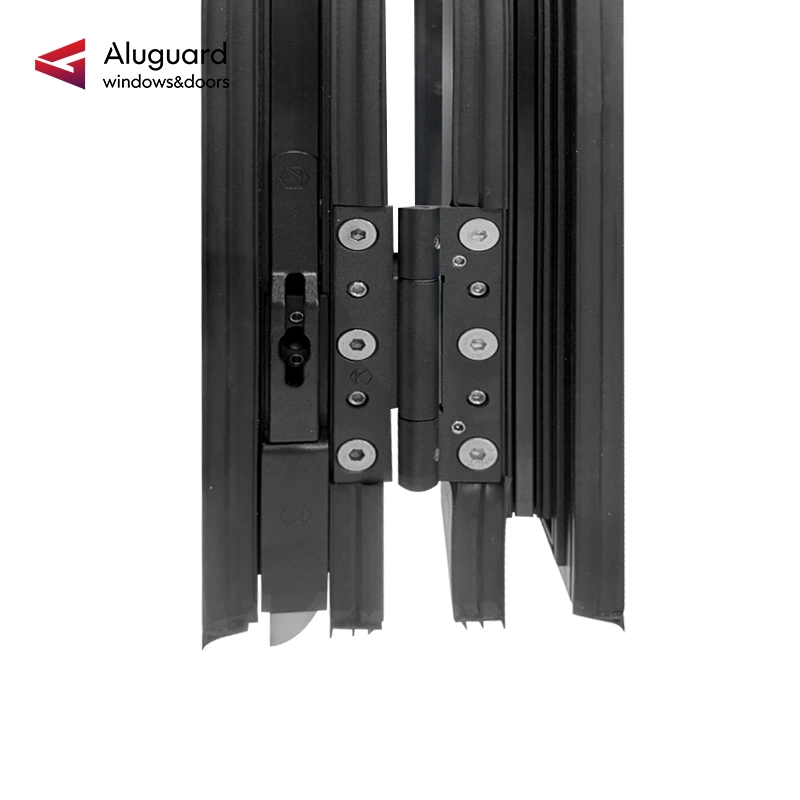

Reinforced Hinges

✓

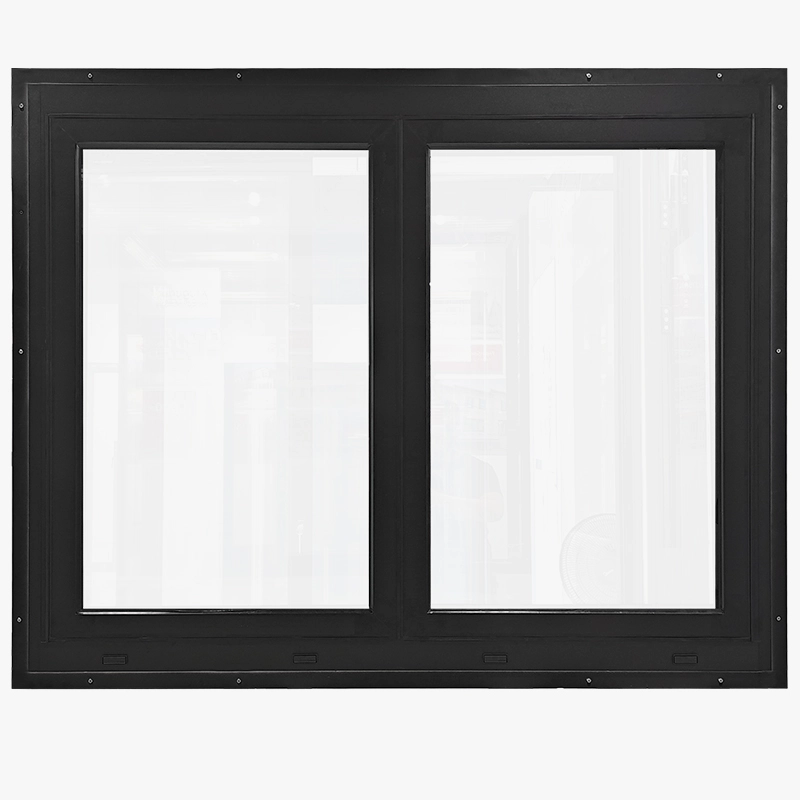

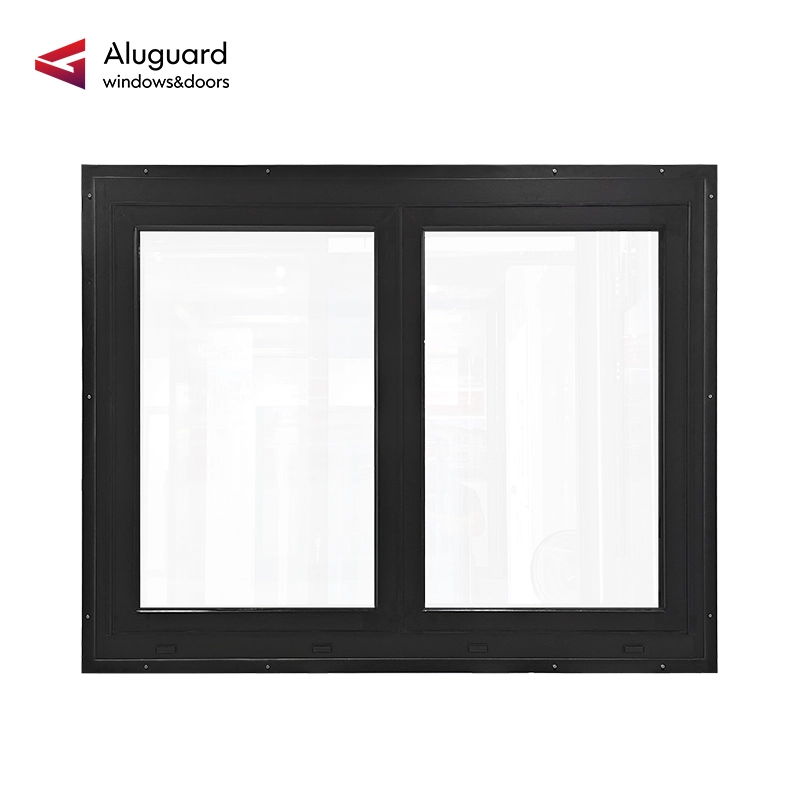

Slim Frame & Nailing Fin

✓

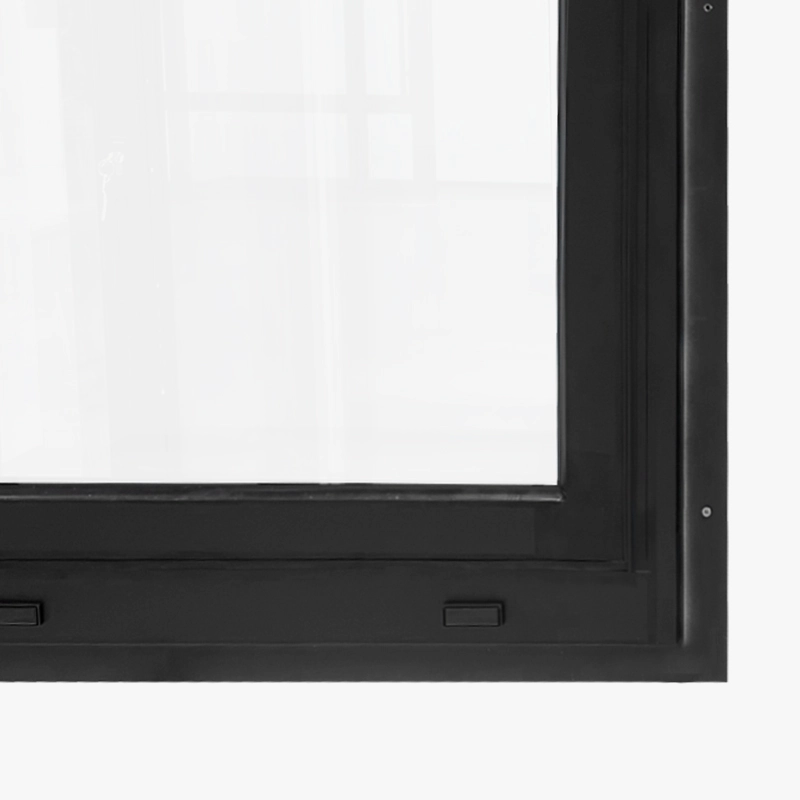

Multi-Point Drainage

CUSTOM SOLUTIONS

OEM & ODM Services Tailored to Your Project Needs

Project-specific configurations can be discussed around finish color, glass and other available door-system requirements. Final options should be confirmed according to the selected pivot door configuration, technical requirements and production feasibility.

Standard Colors

⦁ A high-quality window deserves a dependable finish. Our low-maintenance, clad-wood products feature an extruded aluminum exterior finished in commercial-grade paint for superior resistance to fading and chalking. Our palette of 19 color options spans from muted, earthy tones to bold, rich colors and three gloss finishes， Custom color matching is also available to meet any design vision.

Custom Colors

⦁ Any color. Any window or door. You name it. No matter what your inspiration for a custom window or door color, Marvin will match it. You get any color your heart desires, with your own personal custom color name and a 20-year warranty. See your Marvin dealer for details and ask about special pricing.

Glass

⦁ Glass options available:Laminate-glass/Low-E_Single_Coating/ Tempered-Glass

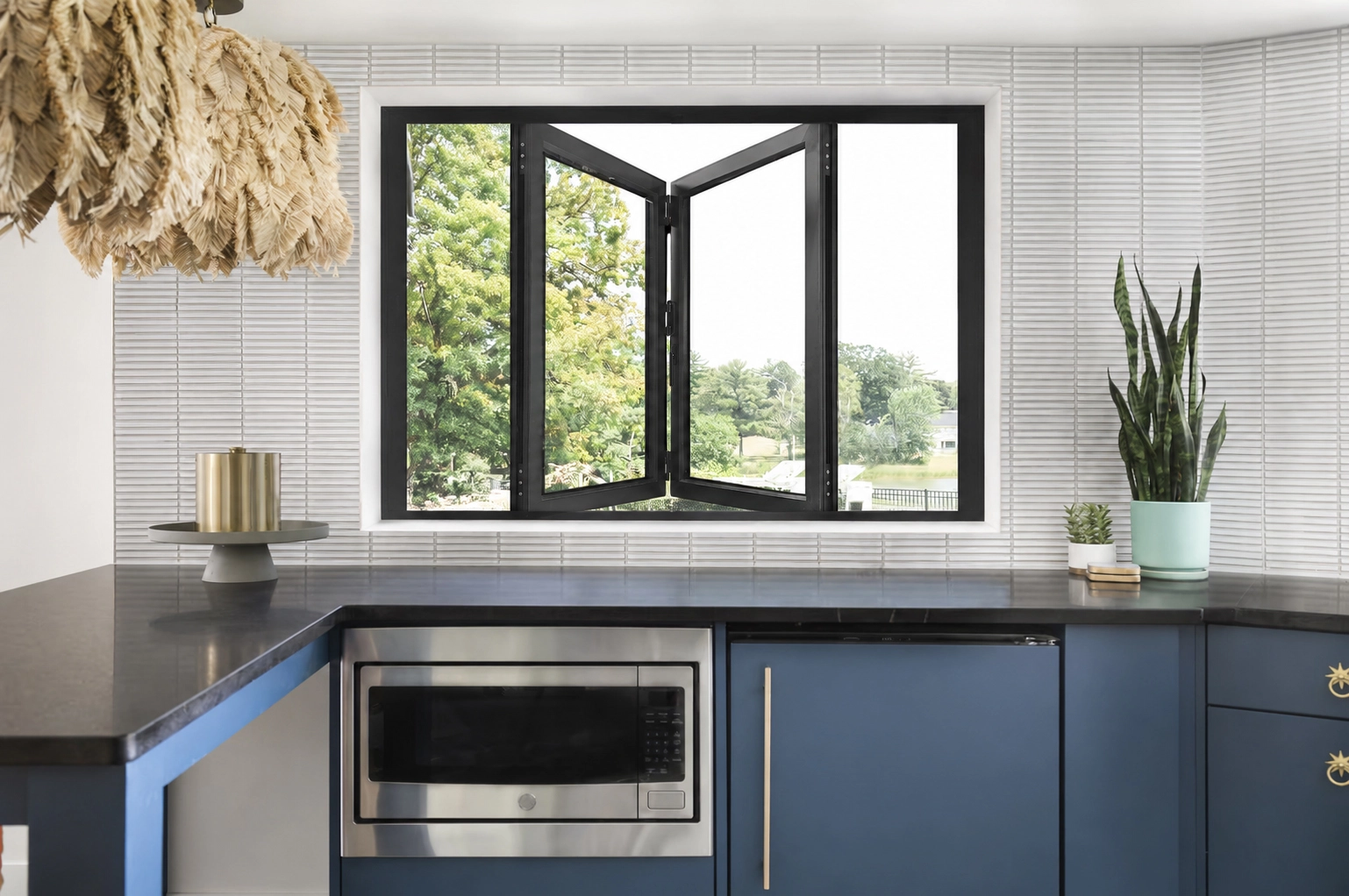

ARCHITECTURAL USES

Designed for Modern Architectural Applications

The 60 Minimalist Aluminum Folding Window is designed for contemporary residential and commercial projects where flexible opening, expansive views and modern aesthetics are essential. Featuring a slim aluminum frame and a smooth folding system, it allows multiple panels to stack neatly to the side, creating wider openings and seamless indoor-outdoor connections.
