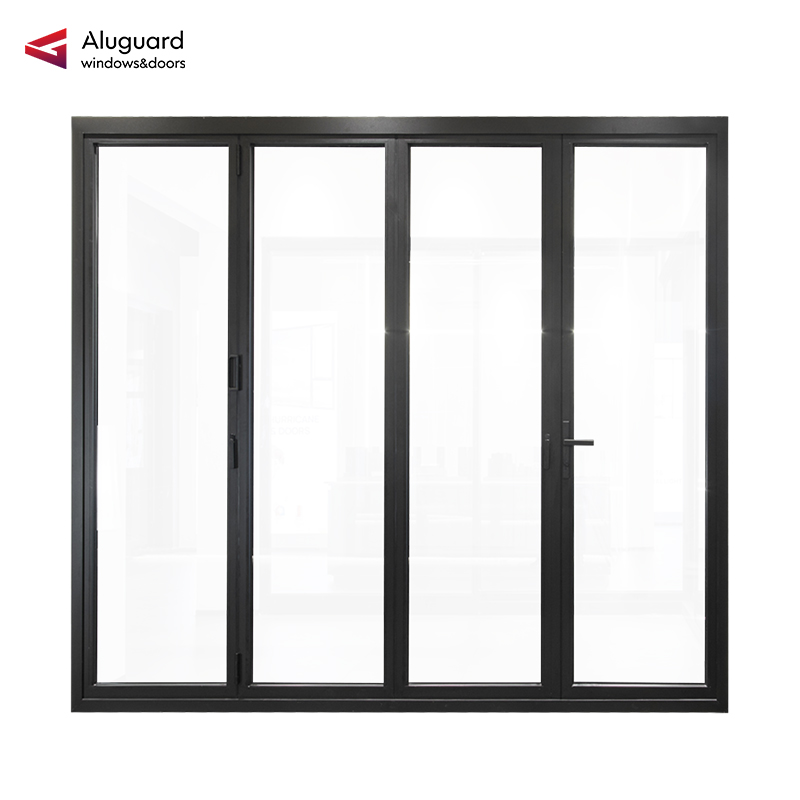

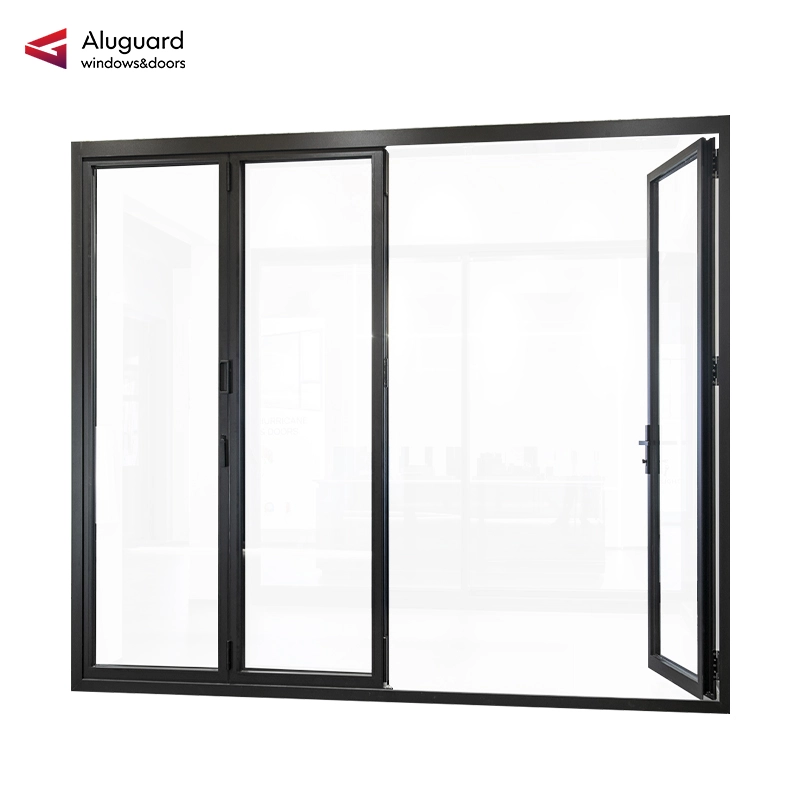

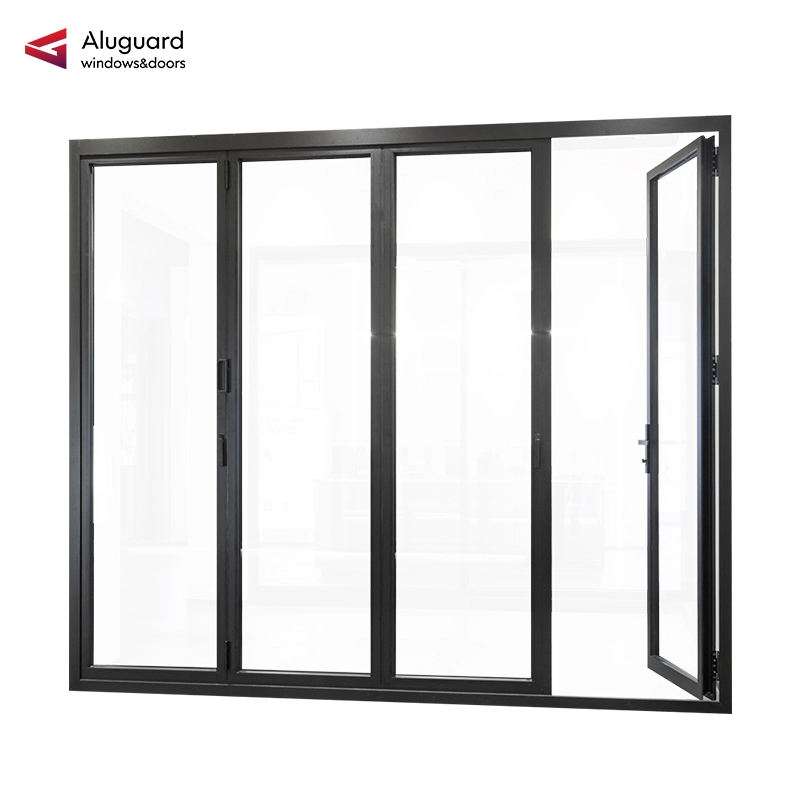

75 Minimalist Slim Aluminum Frame Double Glass Exterior Folding Door With 4 Panels

MINIMALIST SERIES - SLIM FRAME ALUMINUM FOLDING DOOR

Get A Quote

Get Product Catalog

Warranty Support

Professional warranty service and long-term product support.

Secure Packaging

Reliable packaging solutions for safe global transportation.

Fast Global Delivery

Efficient logistics and stable supply for international markets.

OEM & ODM Service

Tailored product development, branding, and engineering support to meet your market and project requirements.

Large Size

The large full view glass panels beautifully fuse indoor and outdoor spaces, enhancing your home's glass expanses and patios – all while their rugged.

Weather resistance

Powder coating aluminum construction makes them virtually maintenance-free.There are EPDM sealing strips between the gaps of the door, which has good air tightness and water tightness.

Thermal Insulation

Available with Advanced Low-E insulating triple-pane glass with krypton or argon for increased energy efficiency.Thermal transmission coefficient:U≤2.3 w/(㎡·k)

TECHNICAL DATA

Performance & Dimensional Specifications

Review the available performance and dimensional data for the 75 Aluminum Frame Double Glass Exterior Folding Door.

Final performance and allowable sizes may depend on the selected glass, hardware, door configuration and project requirements. Where project-specific performance or compliance requirements apply, the relevant configuration and supporting technical information should be confirmed before order finalization.

U-Factor	0.329
SHGC	0.23
Air Leakage	≤0.5
Water Tightness	No Leakage @ 15 psf
Design Wind Load Resistance	60 psf
Overload Wind Load Resistance	63 psf

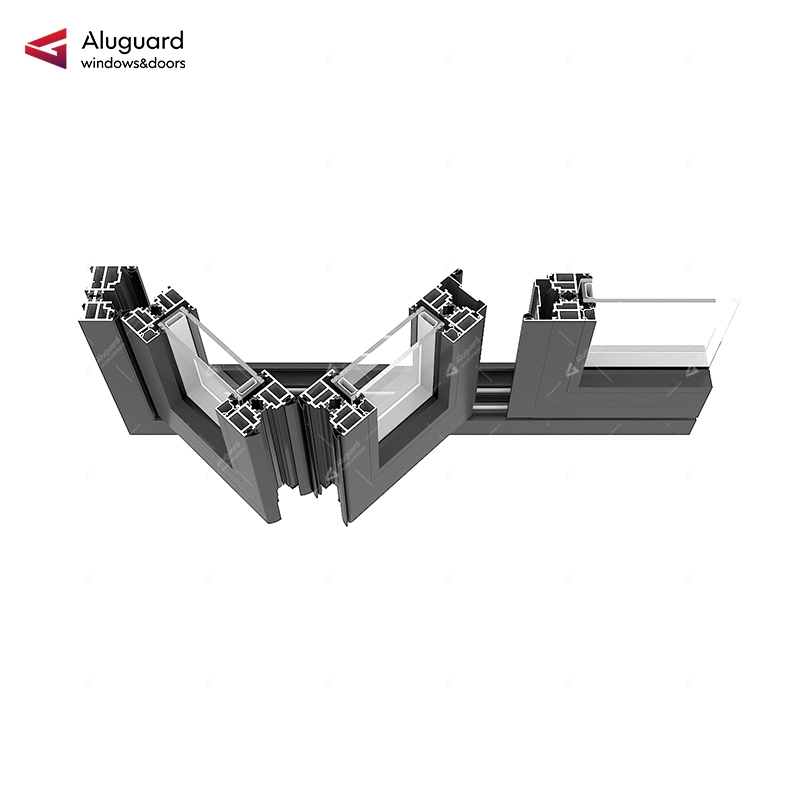

Basic Frame Depth	75mm
Max Swing Panel Height	120"
Max Swing Panel Width	33"
Min Swing Panel Height	80"
Min Swing Panel Width	19"
Suggest Fixed Panel Area (Single)	≤6 m²

DESIGN DETAILS

Pivot Door Hardware & Design Details

The 75 Aluminum Frame Double Glass Exterior Folding Door combines large-format panel capability with locking, handle, sealing and operating components that should be coordinated according to the selected door configuration and project requirements.

✓

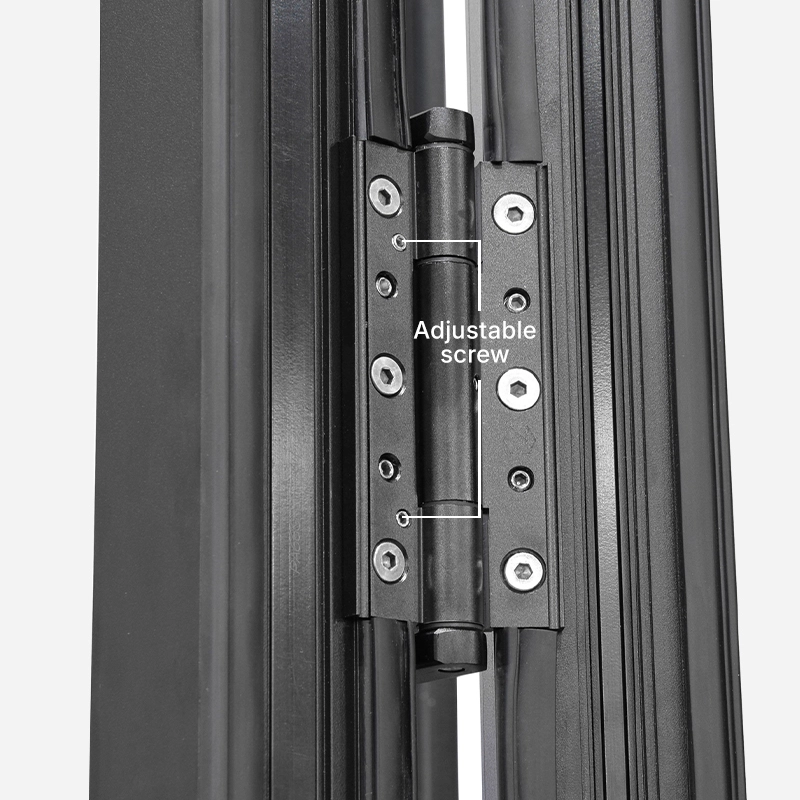

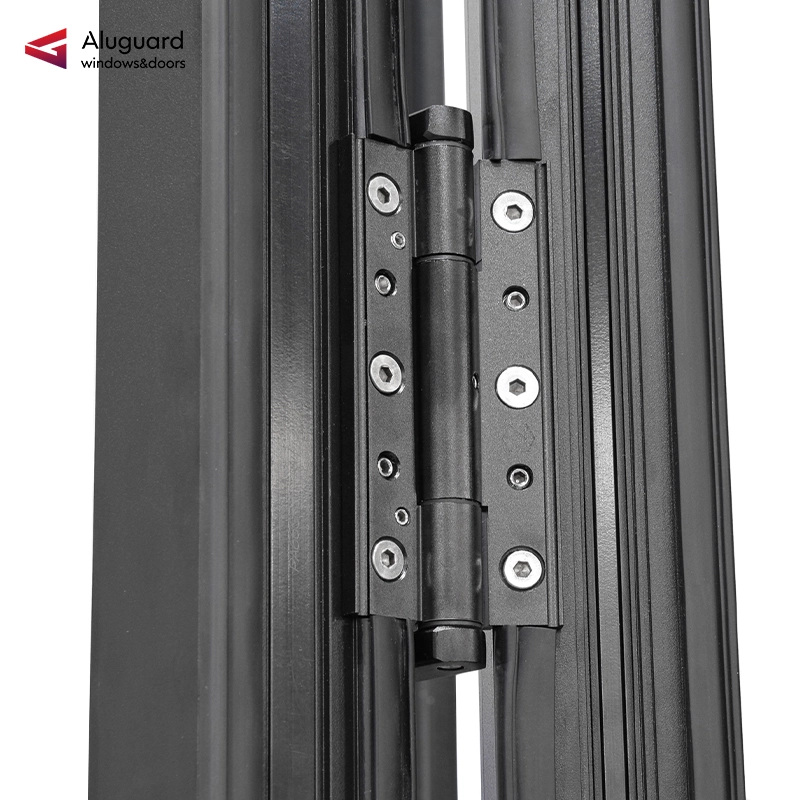

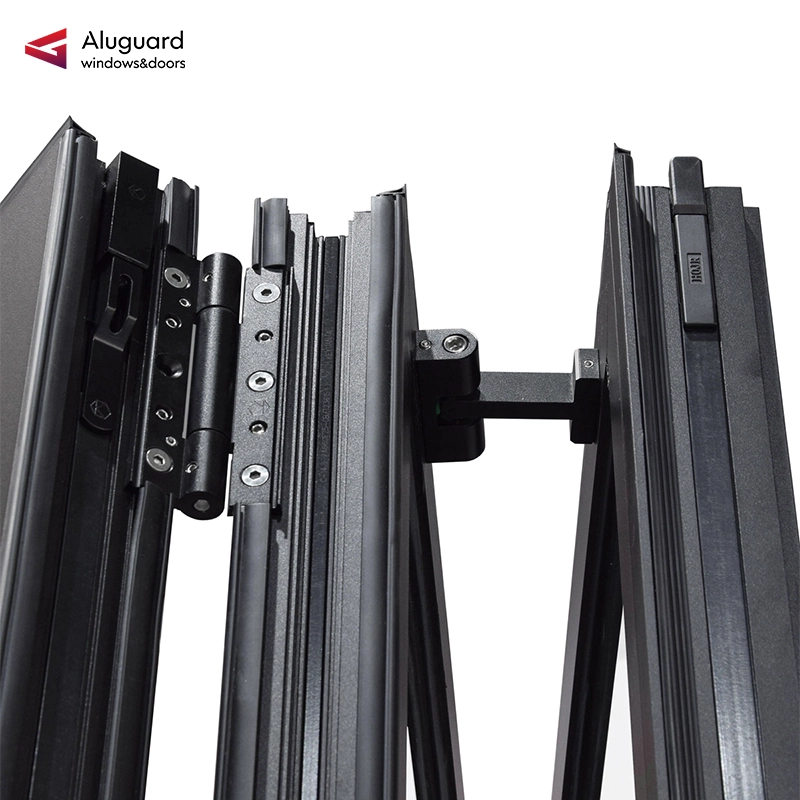

Adjustable Hinge

✓

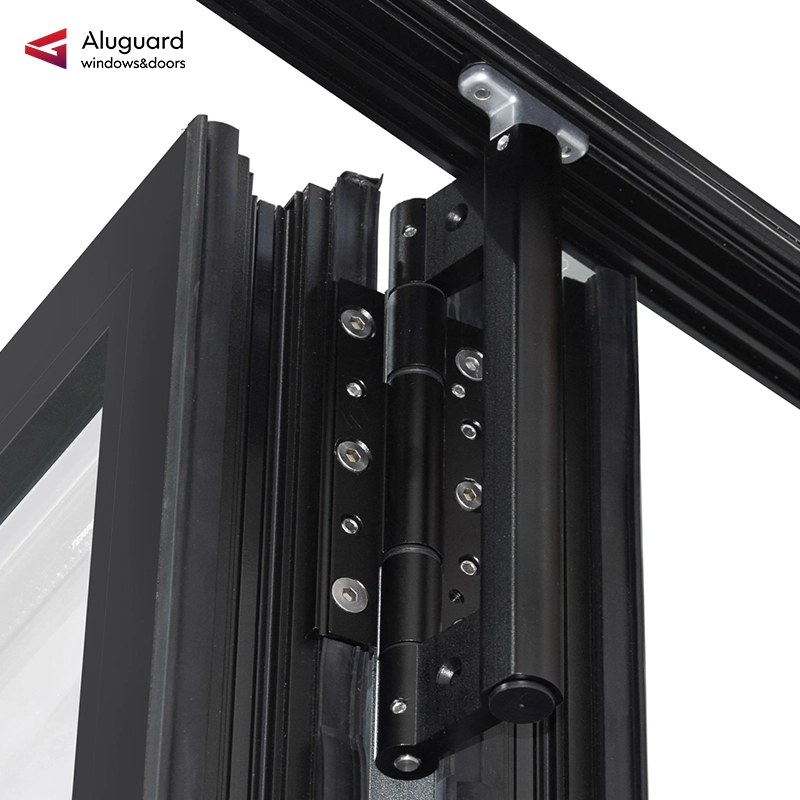

Adjustable top hung roller

✓

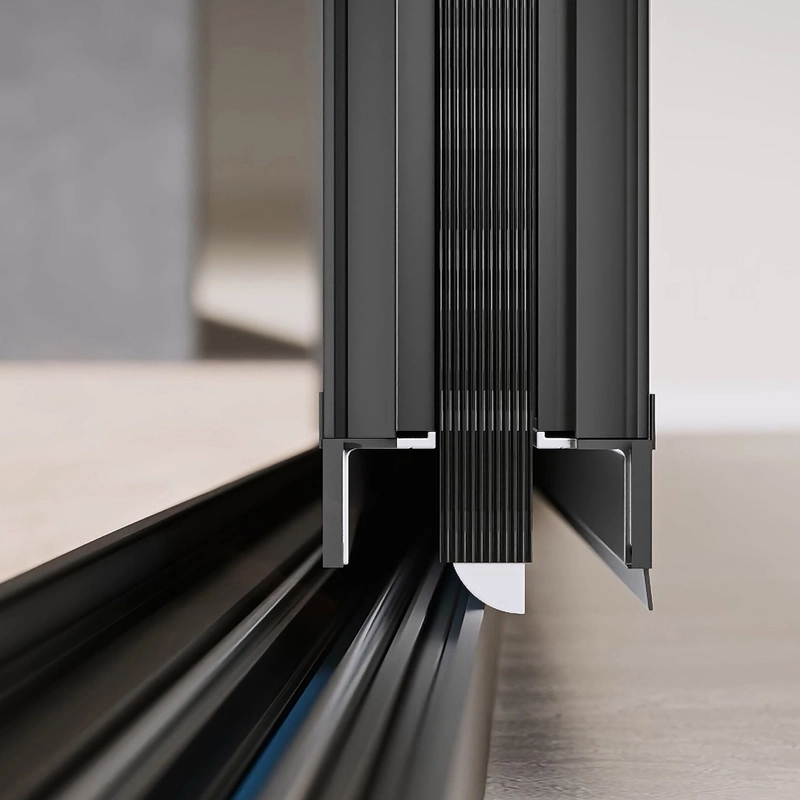

Automatic Rebound Latch

✓

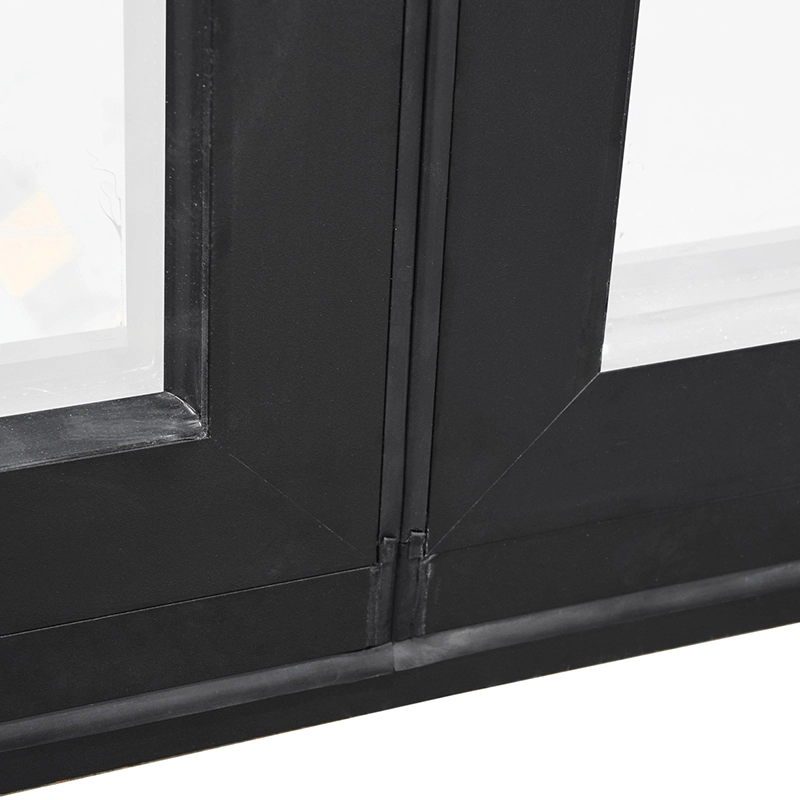

EPDM Weather Strip

✓

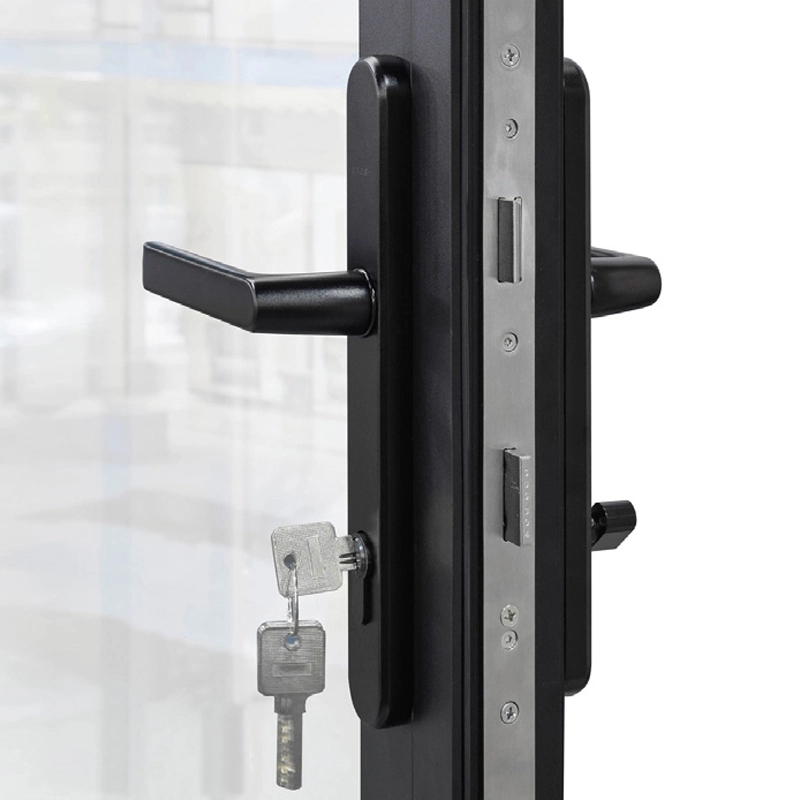

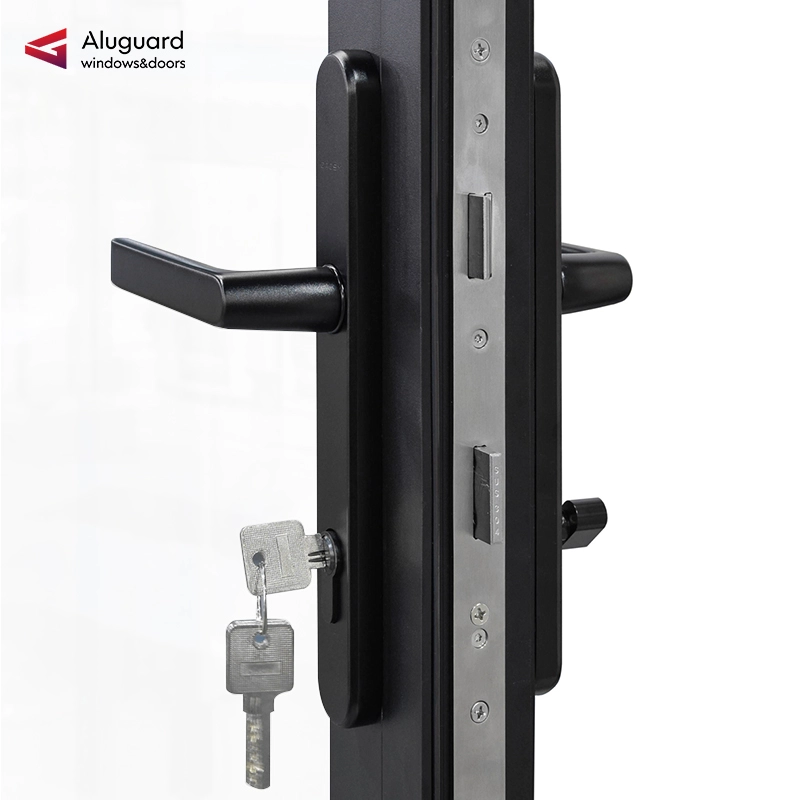

Three point locking system

CUSTOM SOLUTIONS

OEM & ODM Services Tailored to Your Project Needs

Project-specific configurations can be discussed around finish color, glass and other available door-system requirements. Final options should be confirmed according to the selected pivot door configuration, technical requirements and production feasibility.

Handle

⦁ A high-quality window deserves a dependable finish. Our low-maintenance, clad-wood products feature an extruded aluminum exterior finished in commercial-grade paint for superior resistance to fading and chalking. Our palette of 19 color options spans from muted, earthy tones to bold, rich colors and available in three glossy colors. Custom color matching is also available to meet any design vision.

Standard Colors

⦁ A high-quality window deserves a dependable finish. Our low-maintenance, clad-wood products feature an extruded aluminum exterior finished in commercial-grade paint for superior resistance to fading and chalking. Our palette of 19 color options spans from muted, earthy tones to bold, rich colors and three gloss finishes， Custom color matching is also available to meet any design vision.

Custom Colors

⦁ Any color. Any window or door. You name it. No matter what your inspiration for a custom window or door color, Marvin will match it. You get any color your heart desires, with your own personal custom color name and a 20-year warranty. See your Marvin dealer for details and ask about special pricing.

Glass

⦁ Glass options available:Laminate-glass/Low-E_Single_Coating/ Tempered-Glass

Configuration

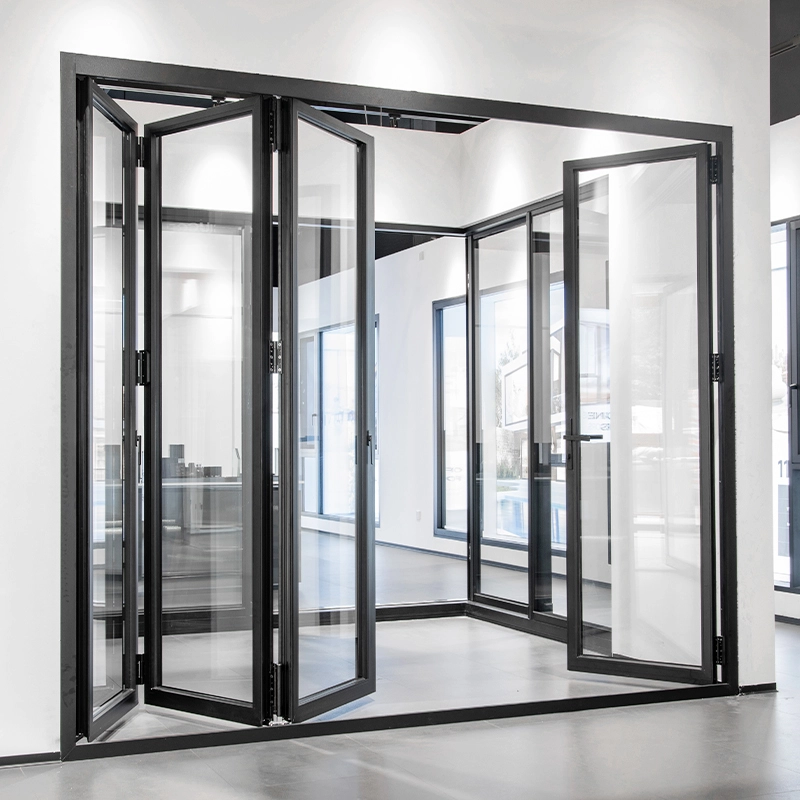

⦁ Any folding configuration can be achieved We also offer other customizable configurations. Available in 2, 3, 4, 5, and 6 panel configurations, our folding door system offers flexible customization options to meet different architectural requirements and opening dimensions.

ARCHITECTURAL USES

Designed for Modern Architectural Applications

Engineered to adapt to different architectural styles, spatial requirements, and project specifications, providing flexible solutions for a wide range of building applications. From dimensions and configurations to finishes, glazing, and hardware options, each system can be tailored to meet specific design objectives, functional requirements, and overall project conditions.
