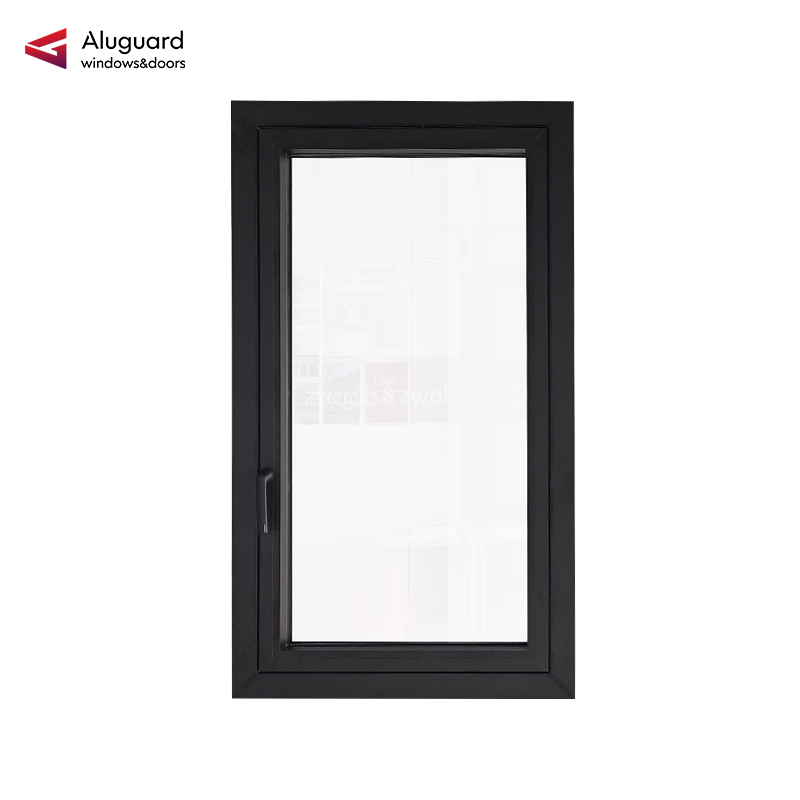

90 High-Performance Modern Dual Action Aluminum Window with Tilt & Turn Opening System

HIGH PERFORMANCE– MODERN DUAL ACTION ALUMINUM WINDOW SYSTEM

Get A Quote

Get Product Catalog

Warranty Support

Professional warranty service and long-term product support.

Secure Packaging

Reliable packaging solutions for safe global transportation.

Fast Global Delivery

Efficient logistics and stable supply for international markets.

OEM & ODM Service

Tailored product development, branding, and engineering support to meet your market and project requirements.

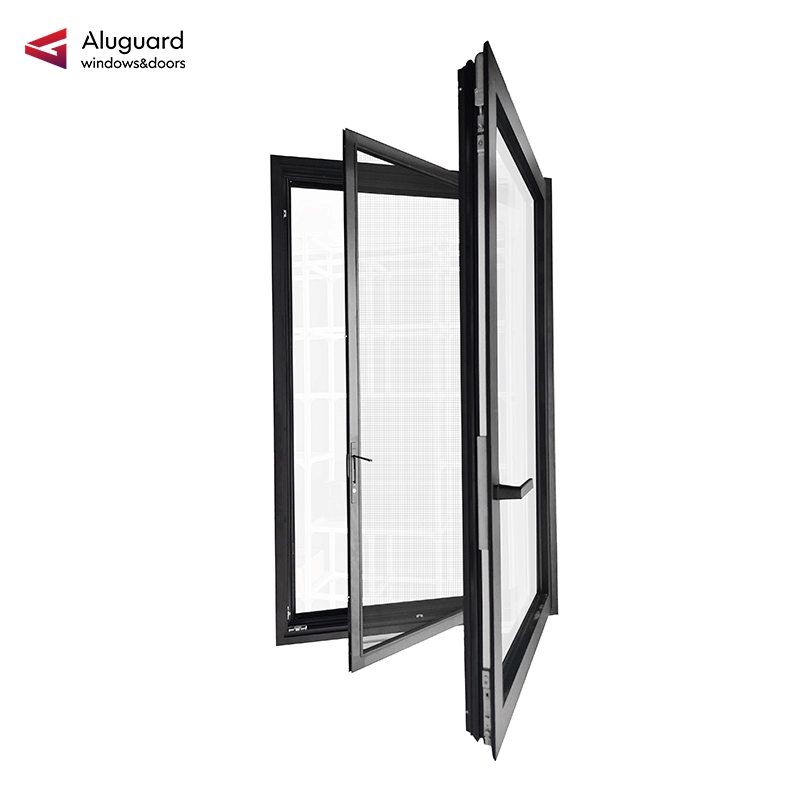

Innovative Dual Action Design

The dual action window combines two opening functions in one intelligent system, allowing both inward tilt ventilation and full side opening operation. This flexible design provides better airflow control, convenient daily use, and enhanced safety for modern living spaces.

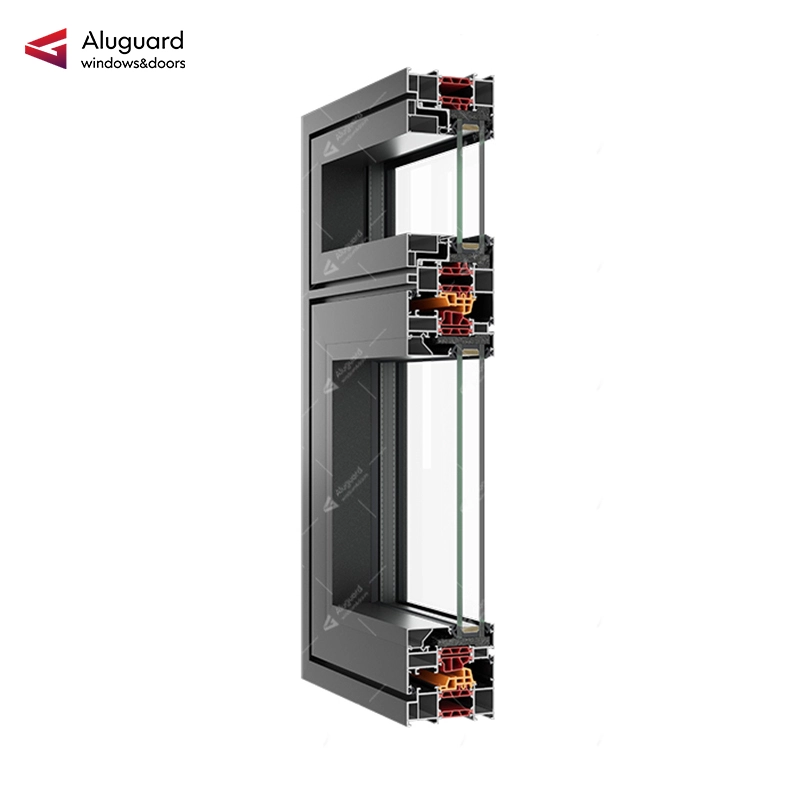

High Wind Pressure Resistance

Engineered with reinforced aluminum profiles and a precision structural design, the dual action window system delivers excellent wind load resistance and overall stability. Suitable for high-rise buildings, coastal areas, and regions with extreme weather conditions.

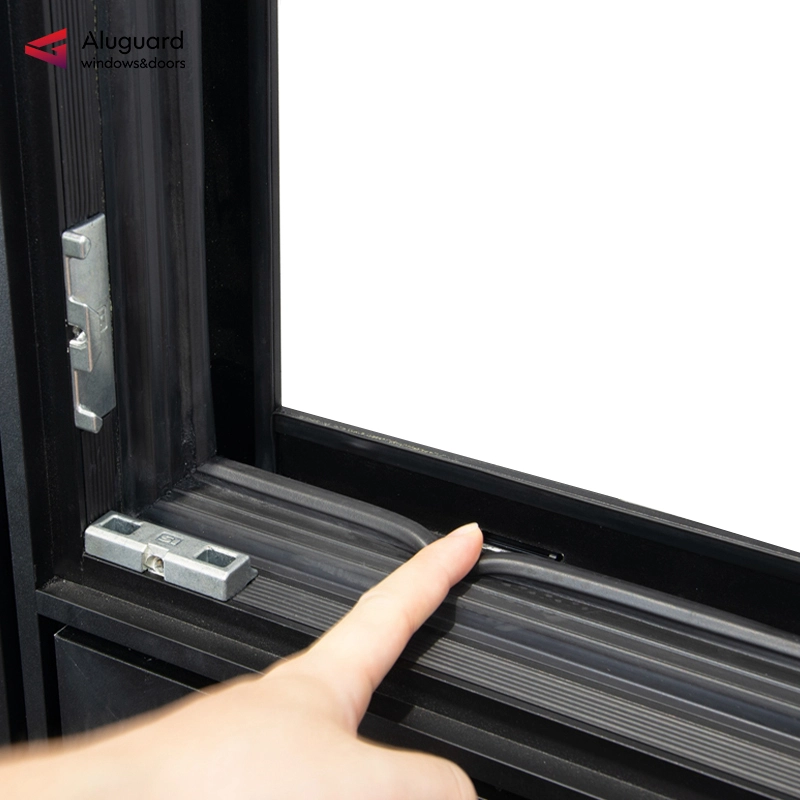

Superior Air Tightness

Multi-layer EPDM sealing strips combined with precision manufacturing technology effectively reduce air leakage and improve indoor comfort. The excellent airtight performance helps minimize dust infiltration while enhancing energy efficiency.

TECHNICAL DATA

Performance & Dimensional Specifications

Review the available performance and dimensional data for the 90 High-Performance Modern Dual Action Aluminum Window.

Final performance and allowable sizes may depend on the selected glass, hardware, door configuration and project requirements. Where project-specific performance or compliance requirements apply, the relevant configuration and supporting technical information should be confirmed before order finalization.

Parameter	Value
U-Factor	0.246
Visible Transmittance	0.25
Air Leakage	≤0.1
Water Tightness	No Leakage @ 15 psf
Design Wind Load Resistance	60 psf
Overload Wind Load Resistance	90 psf

Parameter	Value
Basic Frame Depth	90mm
Max Swing Panel Height	96"
Max Swing Panel Width	36"
Min Swing Panel Height	18"
Min Swing Panel Width	18"
Suggested Fixed Panel Area (Single)	≤6 m²

PRODUCT FEATURES

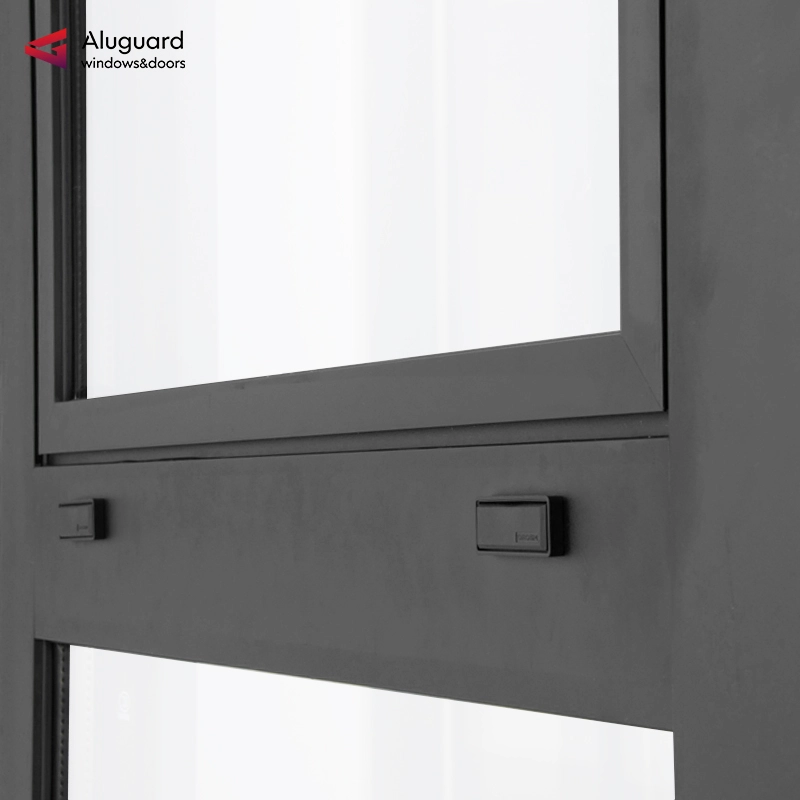

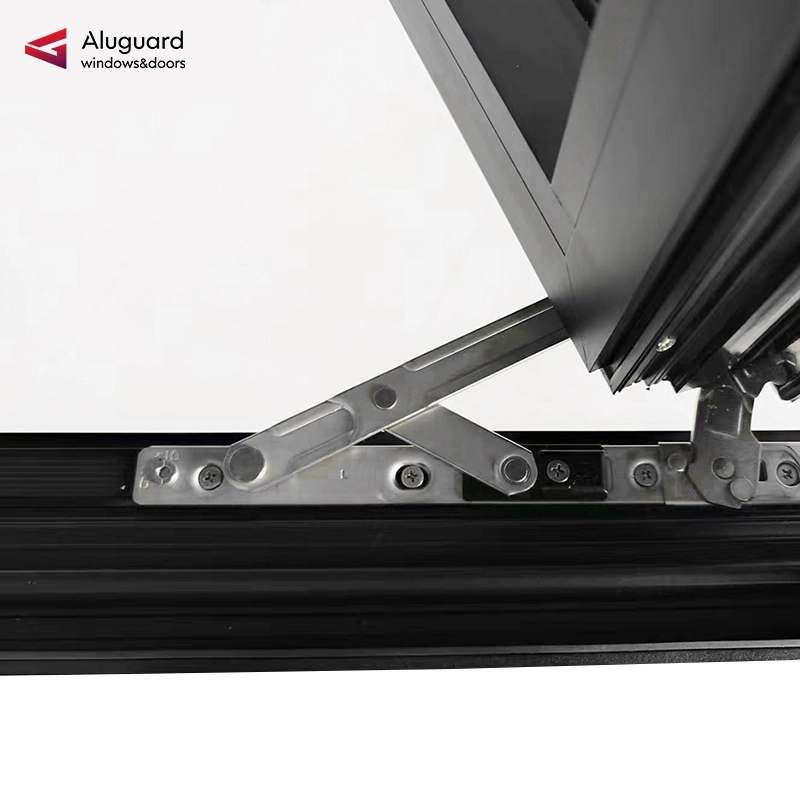

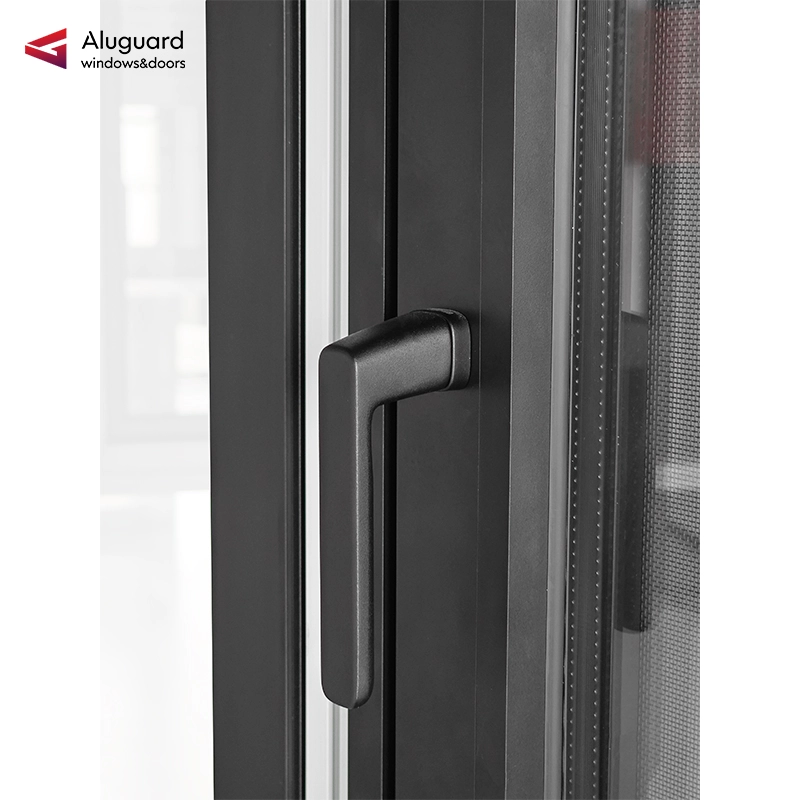

90 Casement Window Hardware & Design Details

The 90 Aluminum Window combines a slim aluminum frame design with an advanced tilt & turn opening system, offering flexible ventilation and convenient operation. Designed for modern architectural applications, it features customizable configurations, refined aesthetics and reliable performance to meet diverse residential and commercial project requirements.

✓

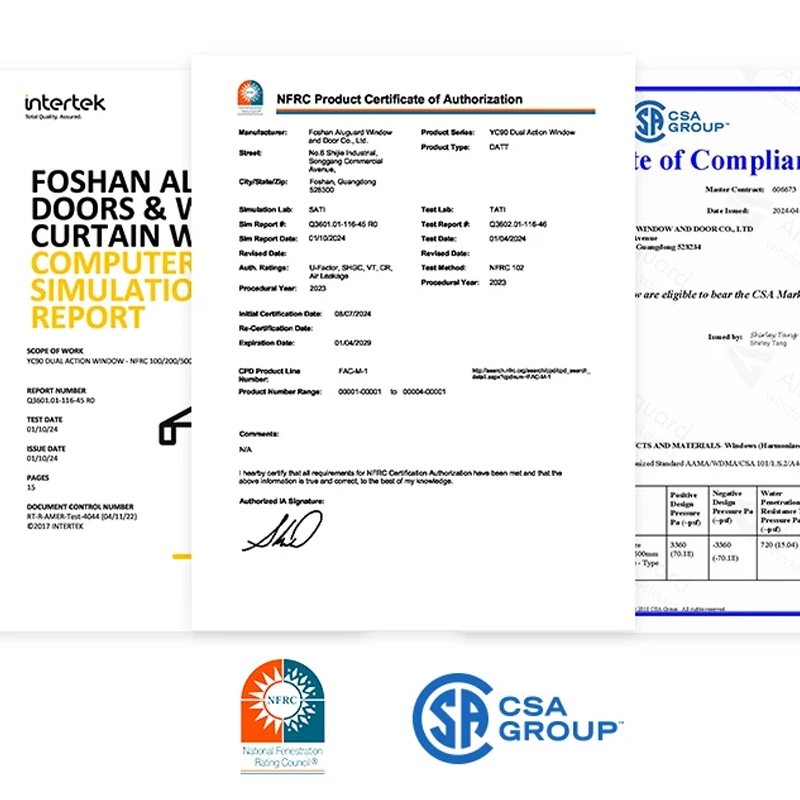

Certification

✓

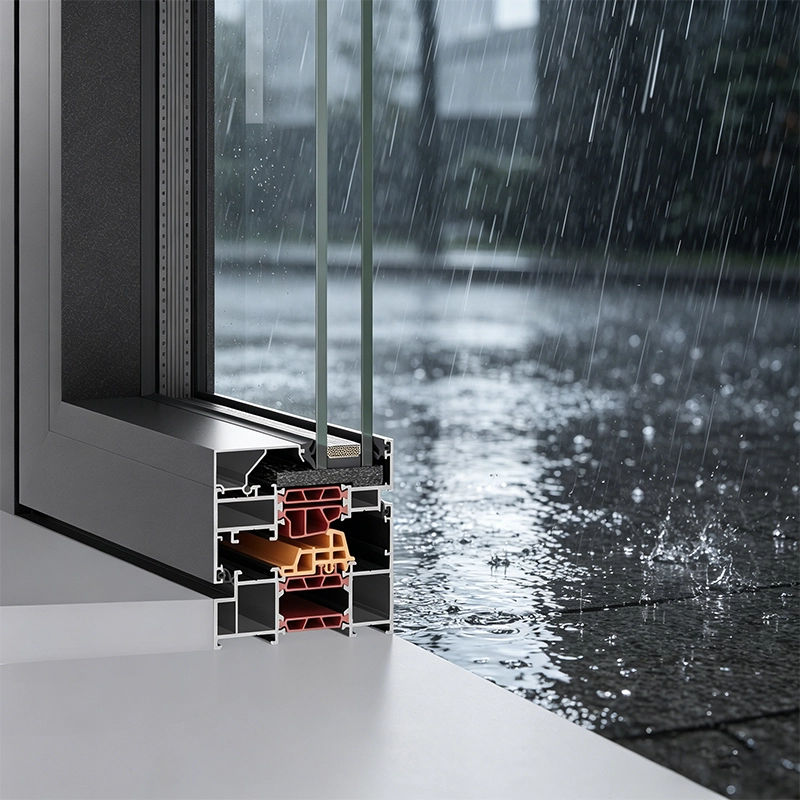

Windproof and waterproof

✓

Opening Method

CUSTOM SOLUTIONS

OEM & ODM Services Tailored to Your Project Needs

Project-specific configurations can be discussed around finish color, glass and other available door-system requirements. Final options should be confirmed according to the selected pivot door configuration, technical requirements and production feasibility.

Standard Colors

⦁ A high-quality window deserves a dependable finish. Our low-maintenance, clad-wood products feature an extruded aluminum exterior finished in commercial-grade paint for superior resistance to fading and chalking. Our palette of 19 color options spans from muted, earthy tones to bold, rich colors and three gloss finishes， Custom color matching is also available to meet any design vision.

Custom Colors

⦁ Any color. Any window or door. You name it. No matter what your inspiration for a custom window or door color, Marvin will match it. You get any color your heart desires, with your own personal custom color name and a 20-year warranty. See your Marvin dealer for details and ask about special pricing.

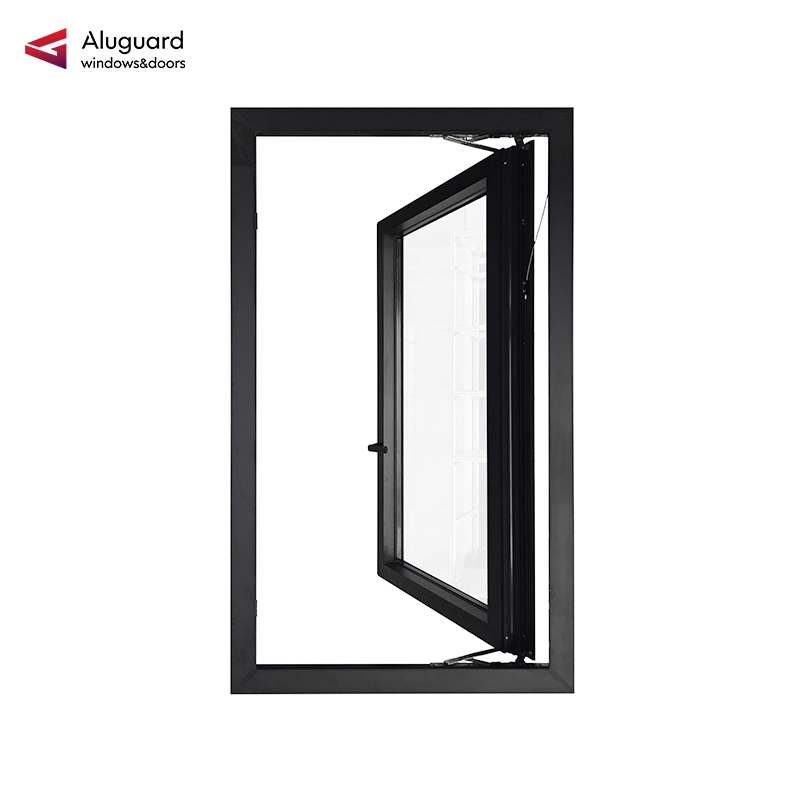

Opening Method

⦁ The aluminum window system is available with four opening configurations — Tilt-Turn, Outswing, Outswing with Screen and Inswing. Designed to meet diverse architectural requirements, these options provide flexible ventilation control, convenient operation and adaptable solutions for different project applications.

Glass

⦁ Glass options available:Laminate-glass/Low-E_Single_Coating/ Tempered-Glass/Triple_Pane

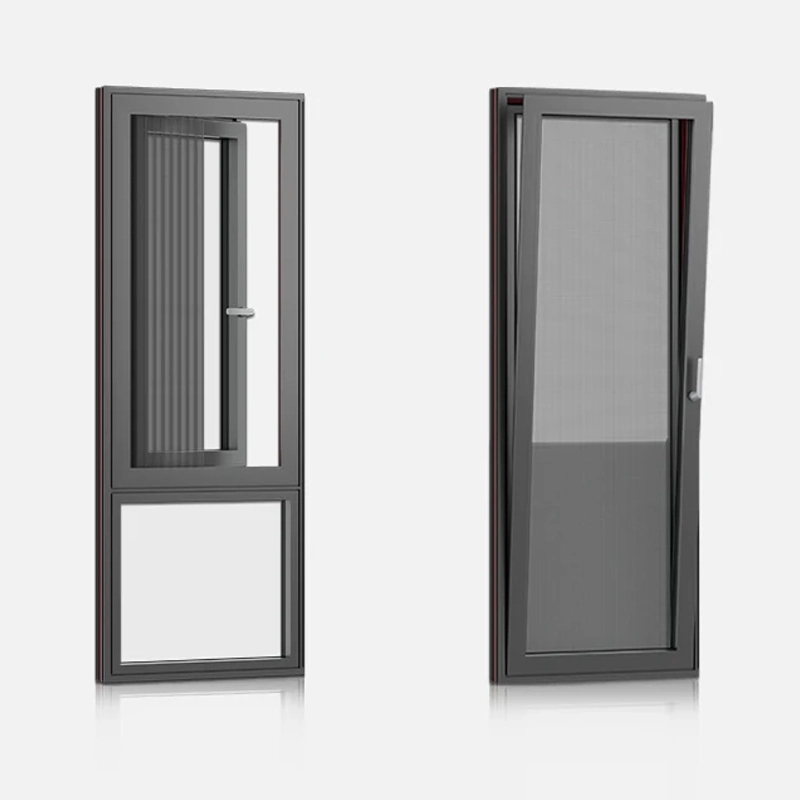

Screen

⦁ Two Screen Options Available :Folding Screen System — Features a flexible retractable design that can be neatly folded away when not in use, providing a cleaner appearance and wider outdoor view while maintaining effective insect protection. Inward Opening Screen System — Designed with a practical inward-opening structure for convenient cleaning and maintenance. The integrated design offers excellent sealing performance and a more stable user experience for daily operation.

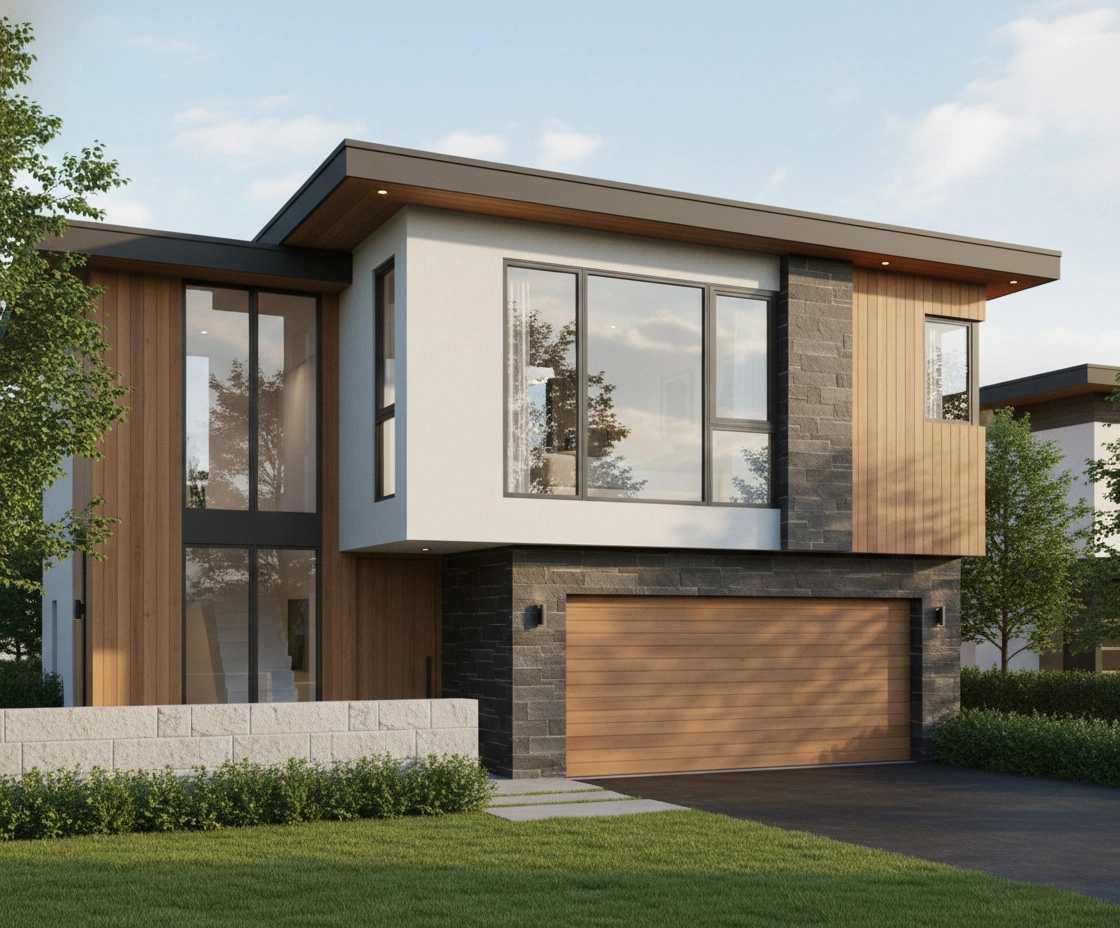

ARCHITECTURAL USES

Designed for Modern Architectural Applications

The 90 High-Performance Modern Dual Action Aluminum Window is designed for contemporary architectural projects where superior performance, durability and functional flexibility are essential. Featuring an advanced tilt & turn opening system, robust aluminum framing and customizable configurations, the system delivers excellent thermal efficiency, weather protection and user comfort. Final product configurations can be tailored according to project dimensions, glass selections, hardware options, performance requirements and specific architectural conditions.
